MS51835B
REQUIREMENTS:

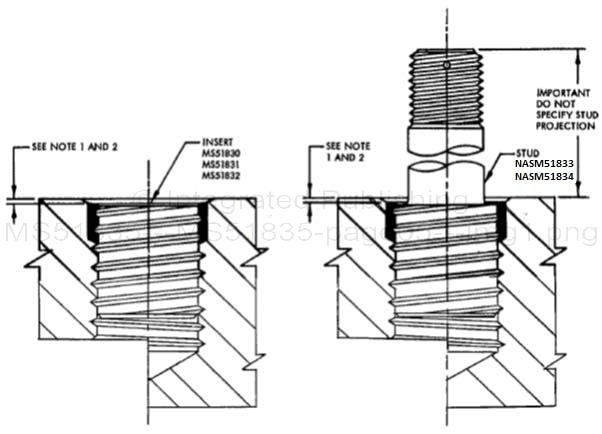

FIGURE 2. Assembly of Inserts and Studs.
Hole preparation in accordance with Tables I, II and III per applicable thread size of part and corresponding dash number.
1. Install insert or stud as shown. (Keys locate correct depth.)
2. Drive keys as shown.
3. Typical drawing callout to be located in vicinity of part identification.
For Insert For Stud
INSTALL INSERT IN INSTALL STUD IN ACCORDANCE ACCORDANCE WITH MS51835 WITH MS51835
INSERT VIEW STUD VIEW
4. Replacement of inserts and studs is made with same size parts as those removed and in same manner as originally installed.
5. In materials harder than 150 Brinnell, key slots, broached prior to insert installation, may be required.
