MS33781 Recess, Offset Cruciform, Dimensions Of Recess, Gage And Driver For S/S By Nasm33781

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7

INCH-POUND

MS33781B

9 JULY 1996

SUPERSEDING MS33781A

24 JUNE 1965

MILITARY SPECIFICATION SHEET RECESS, OFFSET CRUCIFORM,

DIMENSIONS OF RECESS, GAGE AND DRIVER FOR

This specification is approved for use by all Departments and Agencies of the Department of Defense.

The requirements for acquiring the product described herein shall consist of this specification   sheet and the issue of the following specification  listed  in  that  issue  of  the  Department  of  Defense  Index  of  Specification  and  Standards  (DODISS)  specified  in  the solicitation: NONE

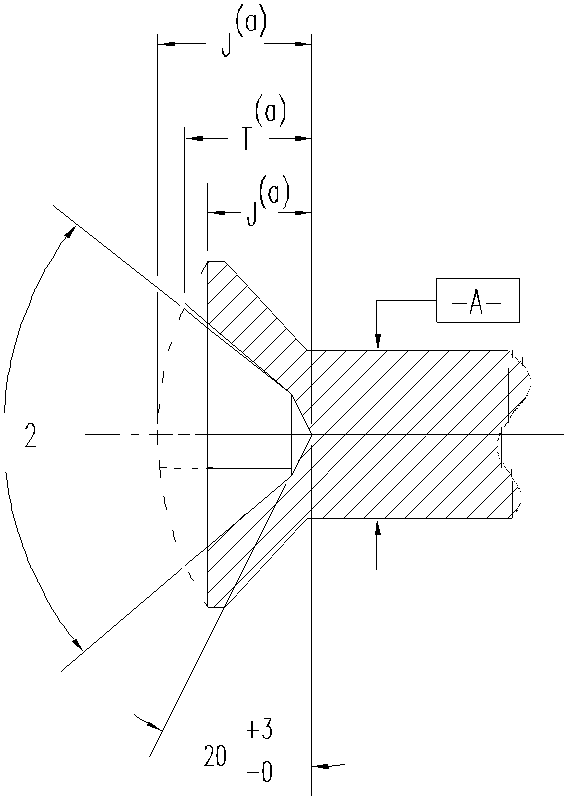

FIGURE 1.  OFFSET CRUCIFORM RECESS(b)

(a)  The specific part standard or drawing which specifies this recess drive referencing this document shall specify values for dimensions J, W, T, and depth GAGE PENETRATION, if the values specified herein are not compatible with the part configuration or performance requirements.

(b)  These recesses are also produced and marketed by the Licensees of Phillips Screw Company under the designation of Torq-Set   .

(c)  For dimensions of ribbed recesses, sizes 6 through 5/16 inch, see MS14191.

AMSC N/A                                                                       1  of  7                                                                                                 FSC 53GP DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
